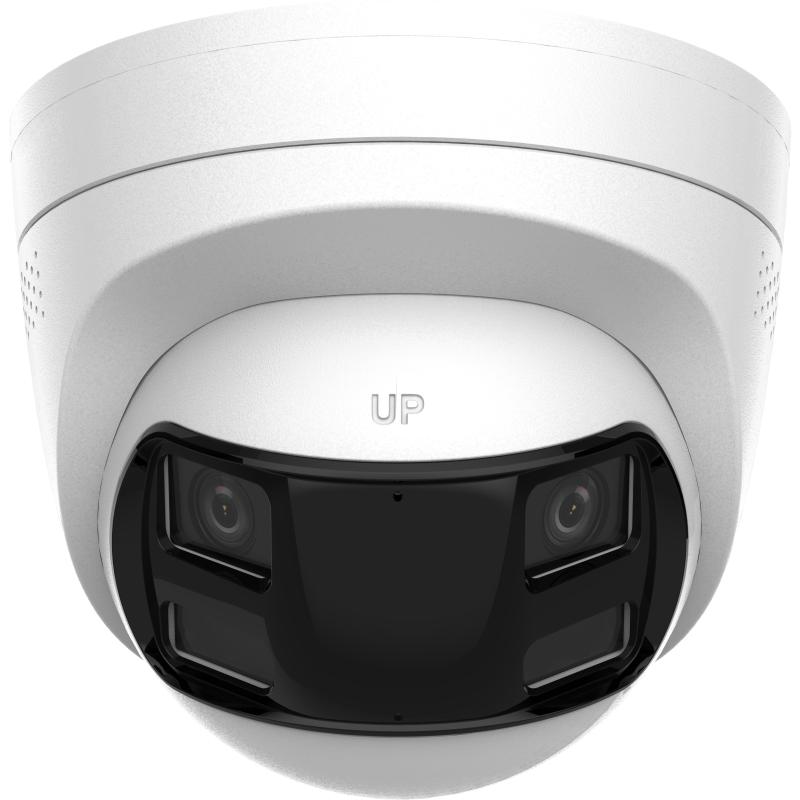

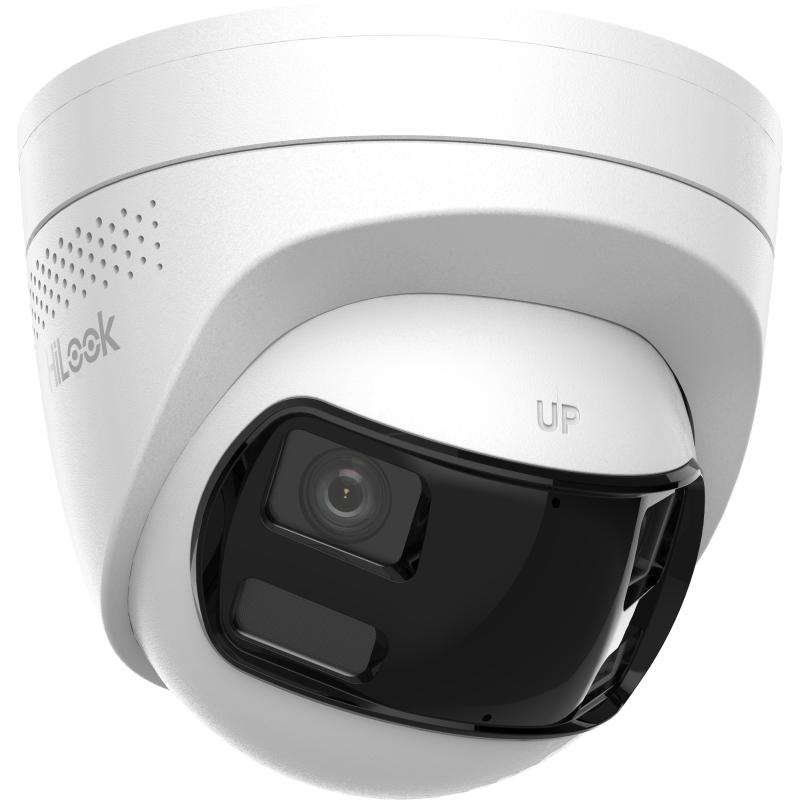

HILOOK 6MP DUAL LENS STITCHED WIDE ANGLE SMART HYBRID LIGHT FIXED TURRET NETWORK CAMERA 180° TWO WAY AUDIO – IPC-T260HAD-LUF/SL

MEGAPIXEL	6MP
LENS	2.8mm Fixed lens
MANUFACTURER	Hilook

Camera

Image Sensor: 1/2.5″ Progressive Scan CMOS

Max. Resolution: 3632 × 1632

Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light

Shutter Time: 1s to 1/100,000s

Day & Night: IR cut filter

Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°



Lens

Lens Type: Fixed focal lens, 2.8 mm

Focal Length & FOV: 2.8 mm, horizontal FOV 180°, vertical FOV 77°

Lens Mount: M12

Iris Type: Fixed

Aperture: F1.6



DORI

DORI2.8 mm, D: 42 m, O: 16 m, R: 8 m, I: 4 m



Illuminator

Supplement Light Type: IR, White Light

Supplement Light Range: Up to 30 m

Smart Supplement Light: Yes

IR Wavelength: 850 nm



Video

Main Stream

50 Hz: 20 fps (3632 × 1632)

60 Hz: 20 fps (3632 × 1632)

Sub-Stream

50 Hz: 20 fps (1200× 536, 960 × 432)

60 Hz: 20 fps (1200× 536, 960 × 432)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate: 32 Kbps to 16 Mbps

H.264 Type: Baseline Profile, Main Profile, High Profile

H.265 Type: Main Profile

Bit Rate Control: CBR,VBR

Region of Interest (ROI): 1 fixed region for main stream

Scalable Video Coding (SVC): H.264 and H.265 encoding



Audio

Audio Type: Mono sound

Audio Sampling Rate: 8 kHz/16 kHz

Environment Noise Filtering: Yes

Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)



Network

Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Simultaneous Live View: Up to 6 channels

APIONVIF (Profile S, Profile T, Profile G),ISAPI,SDK

Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP

User/Host

Up to 32 users

3 user levels: administrator, operator, and user

ClientiVMS-4200, HiLookVision

Web Browser

Plug-in required live view: IE 11

Local service: Chrome 80+, Firefox 80+, Edge 89+




Wide Dynamic Range (WDR): 120 dB

SNR: ≥ 52 dB

Day/Night Switch: Day, Night, Auto, Schedule

Image Enhancement: BLC, HLC, 3D DNR

Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Privacy Mask: 4 programmable polygon privacy masks



Interface

Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Microphone: Yes, 1 built-in microphone

Built-in Speaker: Yes, 1 built-in speaker, Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.

Reset Key: Yes



Event

Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception

Linkage: Upload to FTP, upload to memory card, send email, notify surveillance center, trigger recording, trigger capture, audible warning, strobe light flashing



General

Power

12 VDC ± 25%, 0.83 A, max. 10 W, Ø5.5 mm coaxial power plug, reverse polarity protection

PoE: IEEE 802.3af, Class 3, max. 11.5 W

Material: Base: Metal, Cover: Plastic

Dimension: Ø130.1 mm × 109.1 mm (Ø5.1″ × 4.3″)

Package Dimension: 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)

Weight: Approx. 580 g (1.3 lb.)

With Package Weight: Approx. 760 g (1.7 lb.)

Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language: English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian

General Function: Heartbeat, anti-banding, password protection, password reset via email

Flashing Light

SL model: White Light



Approval

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

IC: ICES-003: Issue 7

KC: KN32: 2015, KN35: 2015

Safety  CB: IEC 62368-1: 2014+A11

Environment

CE-RoHS: 2011/65/EU

WEEE: 2012/19/EU

Reach: Regulation (EC) No 1907/2006

ProtectionIP67: IEC 60529-2013
