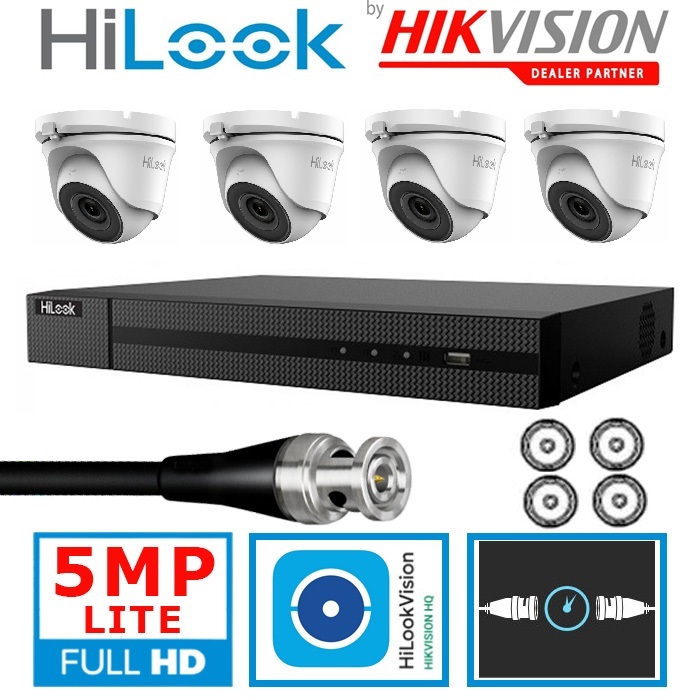

Hilook by Hikvision 8 Channel 5MP + 4X Audio Camera Kit (DVR-208Q-M1+ 4X THC-T150-MS) White

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;



Video and Audio

IP Video Input

2-ch (up to 10-ch)

Enhanced IP mode on:

4-ch (up to 12-ch), each up to 4 Mbps

Up to 6 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input: 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

AHD Input: 5 MP(2560 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input: 5 MP(2560 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

CVBS Input: Support

HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

8-ch via coaxial cable

Video Output Mode: HDMI/VGA simultaneous output

Audio Output: 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous Playback: 8-ch



Recording

Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution:

When 1080p Lite mode is not enabled:

3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

When 1080p Lite mode is enabled:

3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Frame Rate

Main stream:

When 1080p Lite mode not enabled:

For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

When 1080p Lite mode enabled:

3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video Bitrate: 32 Kbps to 6 Mbps

Dual-stream: Support

Stream Type: Video, Video & Audio

Audio Compression: G.711u

Audio Bitrate: 64 Kbps



Network

Total Bandwidth: 96 Mbps

Remote Connection: 64

Network Protocol: TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Network Interface: 1, RJ45 10M/100M self-adaptive Ethernet interface

Wi-Fi: Connectable to Wi-Fi network by Wi-Fi dongle through USB interface



Auxiliary Interface

SATA: 1 SATA interface

Capacity: Up to 10 TB capacity for each disk

Alarm In/Out: N/A

USB Interface: Real panel: 2 × USB 2.0



General

Power Supply: 12 VDC, 1.33 A

Consumption: ≤ 12 W (without HDD)

Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity: 10% to 90%

Dimension (W × D × H): 265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)

Weight: ≤ 1 kg (without HDD, 2.2 lb.)
