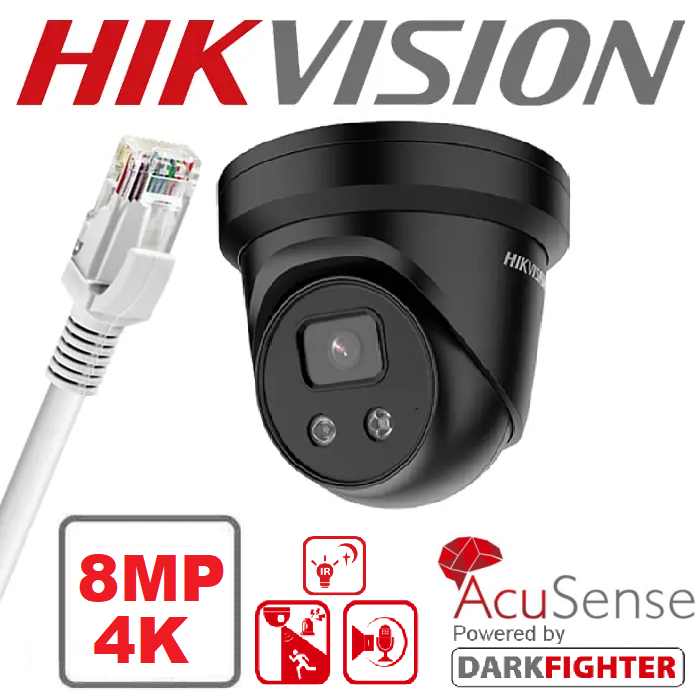

HIKVISION 8MP 4K ACUSENSE TWO WAY AUDIO STROBE LIGHT AND AUDIBLE WARRNING FIXED TURRET NETWORK CAMERA 2.8MM DS-2CD2386G2H-IS2U/SL – BLACK

LENS	2.8mm Fixed lens
MANUFACTURER	Hikvision
MEGAPIXEL	8MP
PRODUCT TYPE	IP Camera

Camera

Image Sensor: 1/1.8″ Progressive Scan CMOS

Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Speed: 1/3 s to 1/100,000 s

Slow Shutter: Yes

P/NP/N

Wide Dynamic Range: 120 dB

Day & Night: IR cut filter

Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Max. Resolution: 3840 × 2160



Lens

Lens Type: Fixed focal lens, 2.8mm

Iris Type: Fixed

Focal Length & FOV

2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131°

4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°

6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60°

Aperture: F1.6

Lens Mount: M12



DORI

2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m

4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m

6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m



Illuminator

Supplement Light Type: IR

IR Range: Up to 30 m

IR Wavelength: 850 nm

Smart Supplement Light: Yes

Visual Alarm: Yes

Supplement Light Range: Up to 30 m



Video

Max. Resolution: 3840 × 2160

Main Stream

50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 24 fps (3840 × 2160)

30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.264+/H.265+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

*Third stream is supported under certain settings.

Video Bit Rate: 32 Kbps to 16 Mbps

H.264 Type: Baseline Profile/Main Profile/High Profile

H.265 Type: Main Profile

H.264: +Main stream supports

H.265: +Main stream supports

Bit Rate Control: CBR/VBR

Scalable Video Coding (SVC): H.264 and H.265 encoding

Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Target Cropping: Yes



Audio

Audio Type: Mono sound

Environment Noise Filtering: Yes

Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC

Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)



Network

Simultaneous Live View: Up to 6 channels

API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK

Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP

User/Host: Up to 32 users. 3 user levels: administrator, operator and user

Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Network Storage

MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client: iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+




SNR: ≥ 52 dB

Target Cropping: Yes

Day/Night Switch: Day, Night, Auto, Schedule

Image Enhancement: BLC, HLC, 3D DNR

Image Parameters Switch: Yes

Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Wide Dynamic Range (WDR): 120 dB



Interface

Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)

Audio

1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium;

1 built-in speaker, 1 built-in microphone

Built-in Microphone: Yes

Built-in Speaker: Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB.

On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB

Hardware Reset: Yes

Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port



Event

Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection

Supports human and vehicle targets classification

Scene change detection

Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light



Deep Learning Function

Face Capture: Yes

Perimeter Protection

Line crossing detection, intrusion detection, region entrance detection, region exiting detection

Supports human and vehicle targets classification



General

Linkage Method: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light

Web Client Language

33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Software Reset: Yes

Firmware Version: V5.5.112

Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, reverse polarity protection

PoE: 802.3af, Class 3

Power Consumption and Current

12 VDC, 0.75 A, max. 9 W

PoE (802.3af, 36 V to 57 V), 0.28 A to 0.17 A, max. 10 W

Power Interface: Ø5.5 mm coaxial power plug

Camera Material: Metal except for trim ring

Camera Dimension: Ø138.3 mm× 124.5 mm (Ø5.4″ × 4.9″)

Package Dimension: 170 mm × 170 mm × 150 mm (6.9″ × 6.9″ × 5.9″)

Camera Weight: Approx. 840 g (1.9 lb.)

With Package Weight: Approx. 1160 g (2.6 lb.)

Power

12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection

PoE: 802.3af, Class 3, 36 V to 57 V, 0.28 A to 0.17 A, max. 10 W

Language

33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian



Approval

EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 )

Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection: IP67 (IEC 60529-2013)
